el wire ULTRA


Product Code: elw-ultra
Condition: New

Manufacturer: El Wire

Product Information

Earn Reward Points: 5

Earn Discount: €0.10

 ULTRA EL Wire lives up to its name in the latest breakthroughs in electroluminescent
technology to create an intense bright glowing wire that outshines all other types
of EL Wire (including Double Core)

At a sturdy 2.6mm wide, you'll find yourself in the desired shape with ULTRA EL Wire.
(1.3mm EL Wire also does this, but ULTRA EL Wire creates a much more robust form)

Please note ULTRA EL Wire has been treated more carefully than standard EL Wire
there are 3 things to be aware of:
1. The bend radius or Ultra EL Wire is 1.2cm, which is much less than standard EL Wire which is 5mm
2. The breaking strain is 500g, compared to 1kg for standard EL Wire
3. Pressure on the Ultra EL Wire should not be more than 500g, this means not too hard

These spectacular improvements are the latest breakthroughs in electroluminescent technology:

1. A thicker copper core gives the EL Wire hold its shape a larger area of ​​luminosity

2. Premium Grade 'next generation' Phosphors are used to coat the most intense bright
neon effect

3. Thicker internal corona wires - that's right!thicker corona wires spiral around the core,
this provides maximum exposure of the current applied to the wire

ULTRA EL Wire comparison

Comparing 1 meter or 2.3mm, 3.2mm and ULTRA EL Wire

ULTRA EL Wire uses exactly the same splitters, drivers and sequencers as standard EL Wire.
It will draw twice as much as its current brightness

So please remember to ULTRA EL Wire like the Double Core EL Wire and half
the EL Driver rating when using ULTRA EL Wire

e.g: if the EL Driver is rated for 5-10m Standard EL Wire
then that EL Driver can power 2.5m-5m or ULTRA EL Wire


if the EL Driver is for 10-30metres standard EL Wire
then it should power 5-15m ULTRA EL Wire

This remarkable glowing wire is 7,- euro per meter and is also available in these lengths
(with connectors attached):

50cm, 1m, 3m, 5m, 10m and 25meter

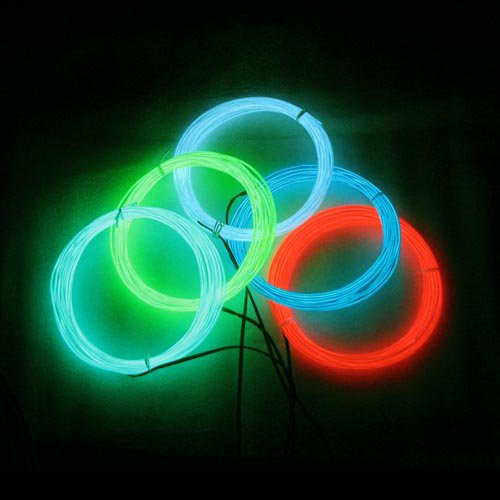

we currently have it available in these colors: Aqua (Tron Blue), Lime Green,
Orangy-Red, Pink, Gold, Deep Blue and White

ULTRA EL Wire comparison

Comparing 2.3mm, 3.2mm and ULTRA EL Wire

As with all electroluminescent technology, because of the natural glows blue / green
the brightest color of the wire is the Aqua, Lime Green and White.

The right side is the right one.

The wire has a connector on it is ready to simply clip into an EL driver

A wide selection of other EL Tape, EL Wire, Sequencers, Drivers and helpful
EL accessories are available from our store
