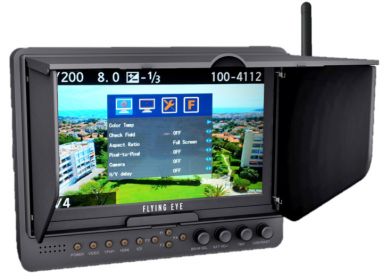

Ground station with TFT 7 inch monitor and 5.8GHz receiver
Product Information
Ground station with TFT 7 inch monitor and 5.8GHz receiver
standard delivery is the lawmate and airwaves version!
please leave a note for the BOSCAM version when you want this!
This is a complete professional autonomous ground station,
including a high contrast TFT 7'' monitor and an integrated 5.8GHz receiver.
This high quality station uses its own batteries (2 pieces) and has its own charger.
Thanks to its high contrast and a big sunshade, this monitor offers a great visual comfort.
This reception station works with Fatshark, IFtron, FOX, and ImmersionRC transmitters.
all transmitters that have the standard airwaves or lalwmate channels
it also with any other having the same frequencies/specifications (see frequencies table here after).
It can be mounted on a tripod allowing a fast deployment and provides you a real freedom for piloting.
With this professional ground station, you'll be able to control your picture or video shots with great ease.
Technical specifications:
High resolution image: 1024 x 600
Power supply: 12V DC
Contrast: 800:1
Brightness: 250cd/m²
View angle: 160°/150° (H/V)
Color screen
Power: 9W
Size: 7 inches (16:9)
Auxiliary video inputs: HDMI, YPbPr
Battery: Type Sony DV
Antenna: RP-SMA omni-directional 3dBi
Channels:
1) 5740Mhz
2) 5760Mhz
3) 5780Mhz
4) 5800Mhz
5) 5820Mhz
6) 5840Mhz
7) 5860Mhz
- - - - - - - - - - - - -
We can also deliver this station specialy for the BOSCAM transmitters.
the frequencies for those transmitters (also sold in our store!) are:
CH1:5705
CH2:5685
CH3:5665
CH4:5645
CH5:5885
CH6:5905
CH7:5925
CH8:5945
If you want this version please leave a note
- - - - - - - - - - - - -
delivery:
1 Reception station
2 Batteries
1 Battery charger
1 Sunshade
Cables
NO TRANSMITTERS INCLUDED !!
PLEASE CHEK OUR FPV TRANSMITTERS PAGES
